STJK(HK) ELECTRONICS CO.,LIMITED
Quality first, reputation first, service first, customers first.
 |
| Place of Origin: | China |
| Brand Name: | INFINEON |
| Certification: | ISO9001 |
| Model Number: | IPB200N25N3G |
| Minimum Order Quantity: | >=1pcs |
|---|---|
| Price: | $4.69 |
| Packaging Details: | Original factory sealed packing with standard types: tube,tray,tape and reel,box,bag packing. |
| Delivery Time: | 2-3days |
| Payment Terms: | D/A, L/C, Western Union, D/P, MoneyGram, T/T |
| Supply Ability: | 100000 Acre/Acres per Day+pcs+1-2days |
| Mounting Type: | Surface Mount Type | Operating Temperature: | -55°C ~ 175°C（TJ） |
|---|---|---|---|
| Package / Case: | TO-263 | Drain Source Voltage (VDSS): | 250 V |
| High Light: | TO-263 IC Connectors,IPB200N25N3G IC Connectors |
||

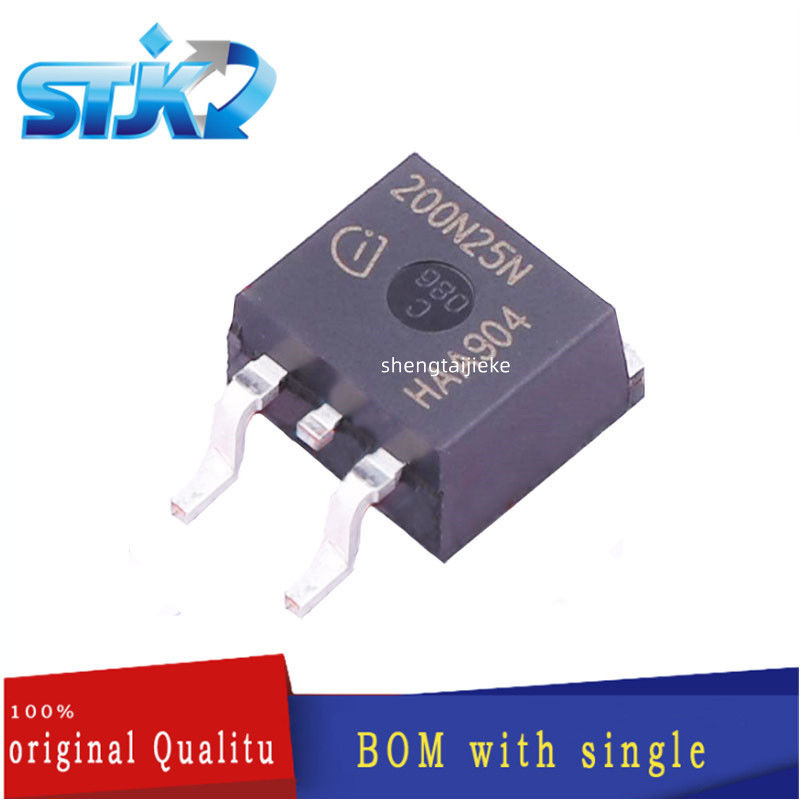

PRODUCT DESCRIPTION
Part number IPB200N25N3G is manufactured by INFINEON and distributed by Stjk. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.
For more information on IPB200N25N3G detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity IPB200N25N3G to your message. Send an email to stjkelec@hotmail.com for a quote now.
PRODUCT PROPERTIES
|
Product Status
|
Active
|
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
250 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
64A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
10V
|
|
Rds On (Max) @ Id, Vgs
|
20mOhm @ 64A, 10V
|
|
Vgs(th) (Max) @ Id
|
4V @ 270µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
86 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
7100 pF @ 100 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
300W (Tc)
|
|
Operating Temperature
|
-55°C ~ 175°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
PG-TO263-3
|
|
Package / Case
|
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
|
|
Base Product Number
|
IPB200
|
Contact Person: Tom Guo
Tel: +8613822899993
