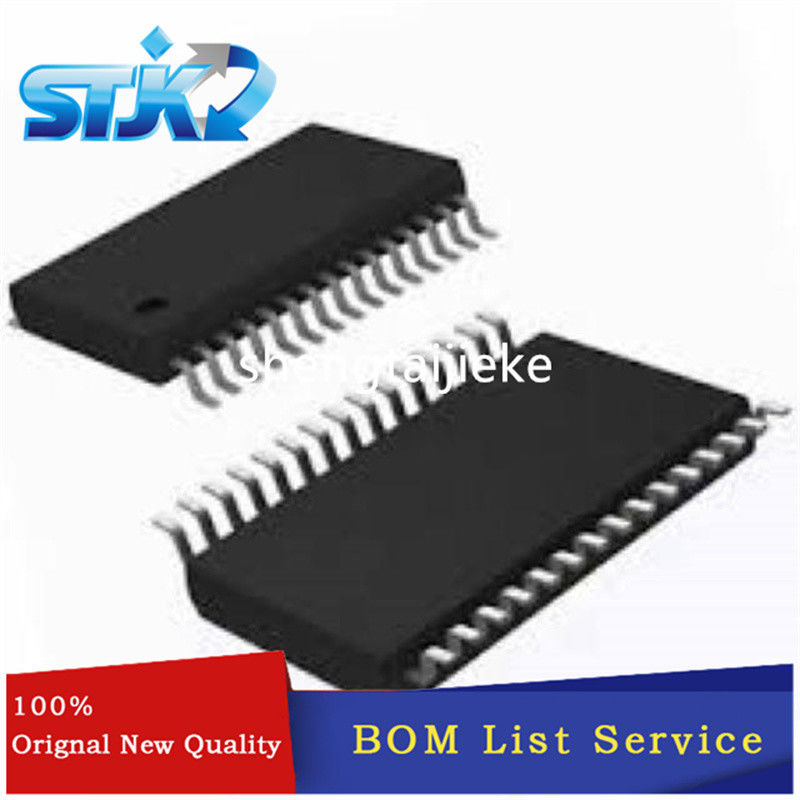

AS6C62256A-70SIN SRAM Asynchronous Memory IC 256Kbit Parallel 70 ns 28-SOP Electronic IC Chip

PRODUCT DESCRIPTION

Part number AS6C62256A-70SIN is manufactured by Alliance Memory, Inc and distributed by Stjk. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.

For more information on AS6C62256A-70SIN detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity AS6C62256A-70SIN to your message. Send an email to stjkelec@hotmail.com for a quote now.

The AS6C62256A is a static RAM manufactured using a CMOS process technology with the following operating modes: - Read - Standby - Write - Data Retention The memory array is based on a 6- transistor cell.

The circuit is activated by the falling edge of E. The address and control inputs open simultaneously. According to the information of W and G, the data inputs, or outputs, are active. In a Read cycle, the data outputs are activated by the falling edge of G, afterwards the data word read will be available at the outputs DQ0-DQ7. After the address change, the data outputs go High-Z until the new information read is available.

The data outputs have not preferred state. The Read cycle is finished by the falling edge of W, or by the rising edge of E, respectively.

Data retention is guaranteed down to 2 V. With the exception of E, all inputs consist of NOR gates, so that no pull-up/pull-down resistors are required.
