STJK(HK) ELECTRONICS CO.,LIMITED
Quality first, reputation first, service first, customers first.

|
| Place of Origin: | China |
| Brand Name: | TI |
| Certification: | ISO9001 |

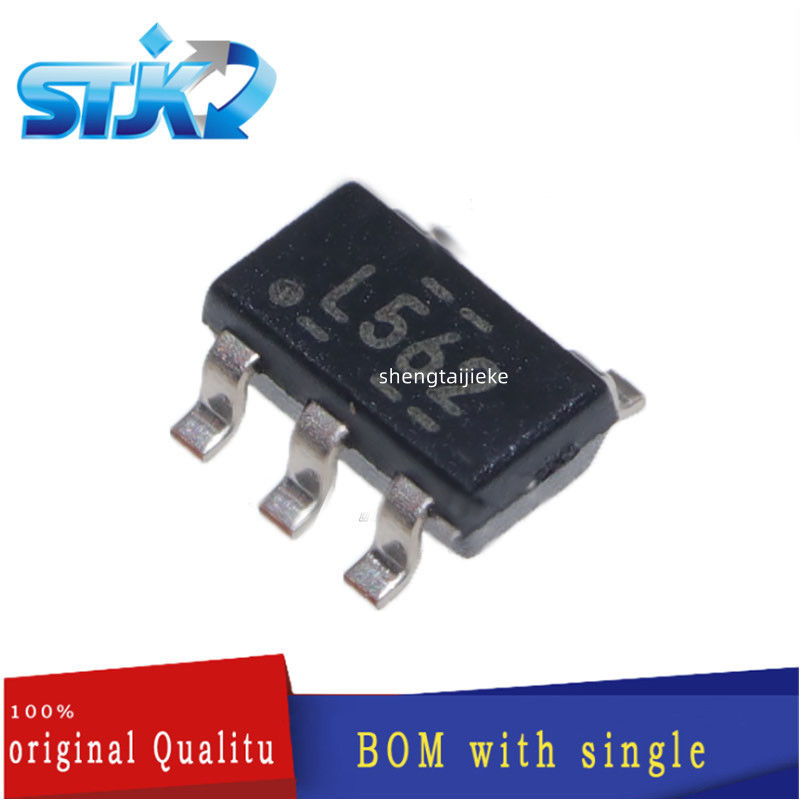

| Model Number: | TPS560200DBVR |
| Minimum Order Quantity: | >=1pcs |
|---|---|
| Price: | request for need |
| Packaging Details: | Original factory sealed packing with standard types: tube,tray,tape and reel,box,bag packing. |
| Delivery Time: | 2-3days |
| Payment Terms: | D/A, L/C, Western Union, D/P, , T/T |
| Supply Ability: | 800000 Acre/Acres per Day+pcs+1-2days |
| Operating Temperature: | -40°C ~ 125°C（TJ） | Operating Voltage: | 4.5V-17V |
|---|---|---|---|
| Type Of Installation: | Surface Mount Type | Packaging: | Tape |
| Frequency-switch: | 600kHz | ||
| Highlight: | IC Connectors TPS560200DBVR,SOT23-5 IC Connectors |
||
PRODUCT DESCRIPTION
Part number TPS560200DBVR is manufactured by TI Technologies and distributed by Stjk. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.
For more information on TPS560200DBVR detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity TPS560200DBVR to your message. Send an email to stjkelec@hotmail.com for a quote now.
PRODUCT PROPERTIES
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
4.5V
|
|
Voltage - Input (Max)
|
17V
|
|
Voltage - Output (Min/Fixed)
|
0.8V
|
|
Voltage - Output (Max)
|
6.5V
|
|
Current - Output
|
500mA
|
|
Frequency - Switching
|
600kHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-74A, SOT-753
|
|
Supplier Device Package
|
SOT-23-5
|
|
Base Product Number
|
TPS560200
|
