| Place of Origin: | China,GuangDong |
| Brand Name: | Analog Devices Inc. |
| Certification: | ISO9001 |
| Model Number: | LTC4219IDHC-12#TRPBF |
| Minimum Order Quantity: | >=10pcs |
|---|---|
| Price: | $5.5 |
| Packaging Details: | Original factory sealed packing with standard types: tube,tray,tape and reel,box,bag packing. |
| Delivery Time: | 2-5days |
| Payment Terms: | Western Union, D/P, D/A, T/T |
| Supply Ability: | 30000 Acre/Acres per Day+pcs+2-3days |
| Description: | IC HOT SWAP CTRLR GP 16DFN | Package / Case: | 16-SSOP |
|---|---|---|---|
| Mounting Type: | Surface Mount | Operating Temperature: | -40°C ~ 85°C |
| Voltage - Supply: | 2.9V ~ 26.5V | Type: | Transistor Driver |
| Product Status: | Active | Base Product Number: | LTC4219 |
PRODUCT DESCRIPTION
The LTC®4219 is an integrated solution for Hot Swap applications that allows a board to be safely inserted and removed from a live backplane.
The part integrates a Hot Swap controller, power MOSFET and current sense resistor in a single package for small form factor applications. The LTC4219 provides separate inrush current control and a 10% accurate 5.6A current limit with foldback current limiting.
The current limit threshold can be adjusted dynamically using an external pin. Additional features include a current monitor output that amplifies the sense resistor voltage for ground referenced current sensing and a MOSFET temperature monitor output. Thermal limit and power good monitoring are also provided.
The power good detection level and foldback current limit profile are internally preset for 5V (LTC4219-5) and 12V (LTC4219-12) applications.
PRODUCT PROPERTIES
|
Product Status
|
Active
|
|
Type
|
Hot Swap Controller, Monitor
|
|
Number of Channels
|
1
|
|
Internal Switch(s)
|
Yes
|
|
Applications
|
General Purpose
|
|
Features
|
Thermal Limit, UVLO
|
|
Programmable Features
|
Current Limit, Fault Timeout
|
|
Voltage - Supply
|
2.9V ~ 15V
|
|
Current - Output (Max)
|
5.6A
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Current - Supply
|
1.6 mA
|
|
Mounting Type
|
Surface Mount
|
|

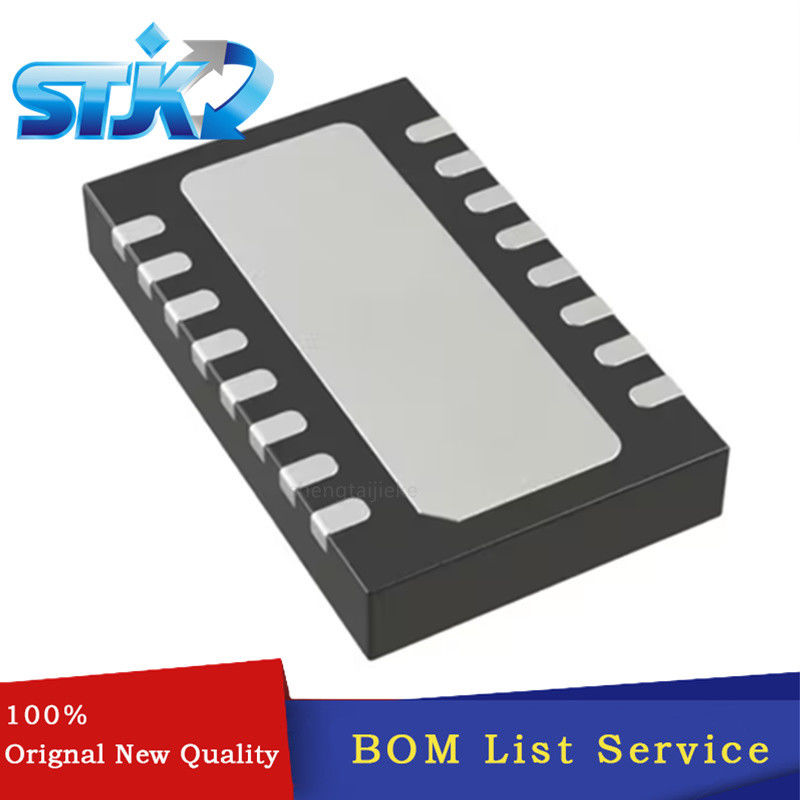

Package / Case
|
16-WFDFN Exposed Pad
|
|
Supplier Device Package
|
16-DFN (5x3)
|
|
Base Product Number
|
LTC4219
|
