STJK(HK) ELECTRONICS CO.,LIMITED
Quality first, reputation first, service first, customers first.
 |
| Place of Origin: | China,GuangDong |
| Brand Name: | American Bright Optoelectronics Corporation |
| Certification: | ISO9001 |
| Model Number: | AB-EZDC |
| Minimum Order Quantity: | >=3pcs |
|---|---|
| Price: | $1.39 |
| Packaging Details: | Tape & Reel；Cut Tape；Digi-Reel |
| Delivery Time: | 2-3Work Days |
| Payment Terms: | T/T/Escrow, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 700000 Box/Boxes Per 2-4Days |
| Detailed Description: | IC LED DRVR LIN PWM 150MA 6DFN | Topology: | Constant Current |
|---|---|---|---|
| Applications: | LED Lighting | Voltage - Output: | 1.6V ~ 15V |
| Operating Temperature:: | -40°C ~ 85°C (TA) | Product Status: | Active |
| Package / Case: | 6-WDFN Exposed Pad | Base Product Number: | AB-EZDC |
| High Light: | AB-EZDC LED Driver Ic Circuit,150mA LED Driver Ic Circuit,linear constant current led driver ic |
||

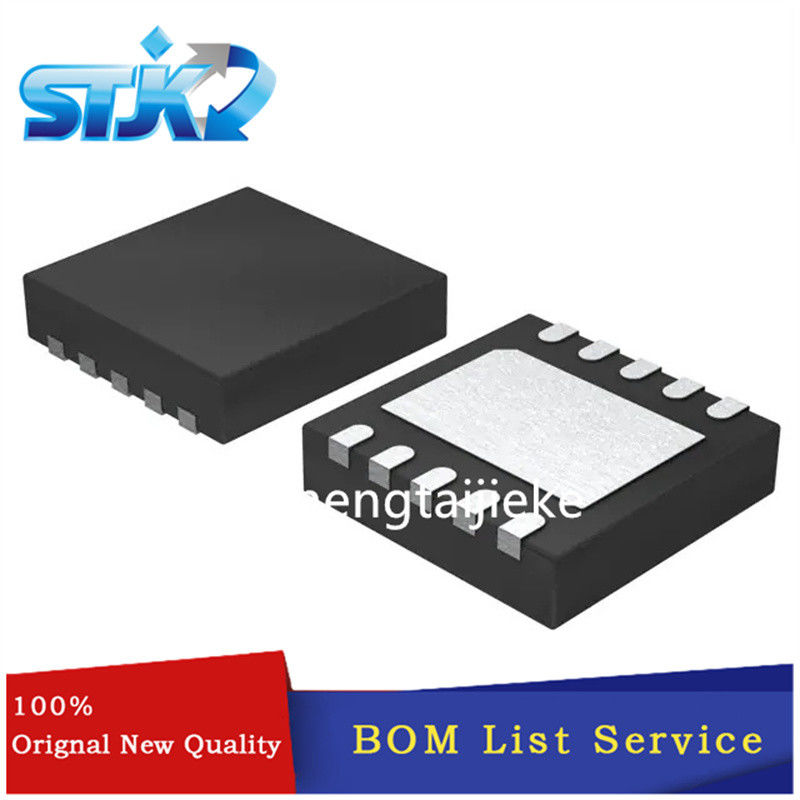

AB-EZDC LED Driver IC 1 Output Linear Constant Current PWM Dimming 150mA 6-DFN
PRODUCT DESCRIPTION
AB-EZDC is a constant current LED driver with the adjustable current. It is designed to maintain constant current and hence constant luminance for DC powered LED lighting applications. Additionally, to ensure system reliability, AB-EZDC is built with thermal protection function (OTP) and offers the adjustable current by an external sense resistor. (current limited by heat dissipation of IC package and heat sink).
PRODUCT PROPERTIES
|
Product Status
|
Active
|
|
Type
|
Linear
|
|
Topology
|
Constant Current
|
|
Internal Switch(s)
|
No
|
|
Number of Outputs
|
1
|
|
Voltage - Supply (Min)
|
1.6V
|
|
Voltage - Supply (Max)
|
18V
|
|
Voltage - Output
|
1.6V ~ 15V
|
|
Current - Output / Channel
|
150mA
|
|
Frequency
|
-
|
|
Dimming
|
PWM
|
|
Applications
|
LED Lighting
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
6-WDFN Exposed Pad
|
|
Supplier Device Package
|
6-DFN (2x2)
|
