STJK(HK) ELECTRONICS CO.,LIMITED
Quality first, reputation first, service first, customers first.
 |
| Place of Origin: | China,GuangDong,ShenZhen |
| Brand Name: | TE Connectivity Potter & Brumfield Relays |
| Certification: | ISO9001 |
| Model Number: | JWD-171-28 |
| Minimum Order Quantity: | >=20pcs |
|---|---|
| Price: | $1.69 |
| Packaging Details: | Tape & Reel；Cut Tape；Digi-Reel |
| Delivery Time: | 1-4Work Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability: | 100000 Pcs/Pieces Per 1-3Days |
| Detailed Description: | RELAY REED DPST 500MA 24V | Coil Type: | Non Latching |
|---|---|---|---|
| Coil Voltage: | 24VDC | Switching Voltage: | 100VDC - Max |
| Operating Temperature:: | -35°C ~ 85°C | Product Status: | Active |
| Termination Style: | PC Pin | Base Product Number: | JWD |
| Highlight: | 500MA Electronic Components Relays,24V Electronic Components Relays,JWD-171-28 |
||

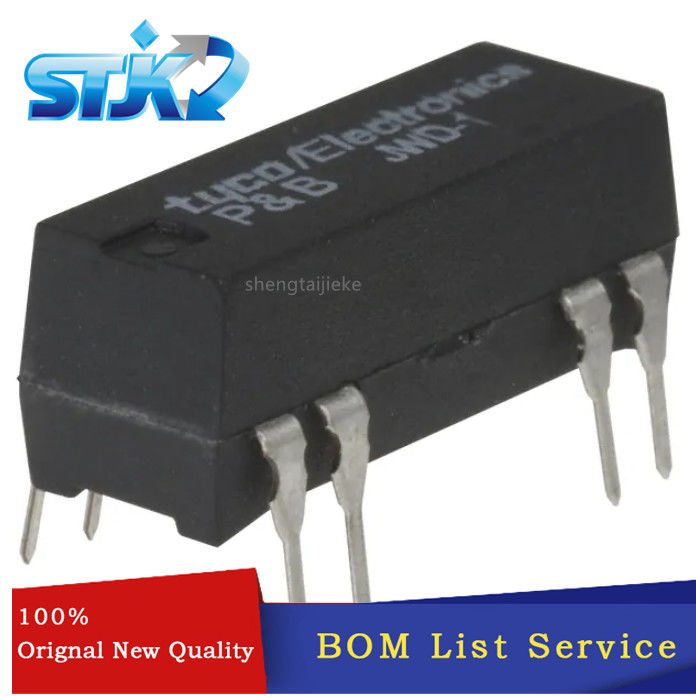

JWD-171-28 RELAY REED DPST 500MA 24V Through Hole Electronic Components Relays
PRODUCT DESCRIPTION
JWD has dual in-line package (DIP) configuration (14-pin DIP)
JWS has single in-line package (SIP) configuration
Low cost, dry reed reliability with various contact arrangements
Wave solderable and immersion cleanable molded epoxy package
Optional coil suppression diode
PRODUCT PROPERTIES
|
Product Status
|
Active
|
|
Mounting Type
|
Through Hole
|
|
Coil Voltage
|
24VDC
|
|
Contact Form
|
DPST-NO (2 Form A)
|
|
Contact Rating (Current)
|
500 mA
|
|
Switching Voltage
|
100VDC - Max
|
|
Coil Current
|
10.9 mA
|
|
Coil Type
|
Non Latching
|
|
Features
|
Diode
|
|
Termination Style
|
PC Pin
|
|
Seal Rating
|
-
|
|
Must Operate Voltage
|
19.2 VDC
|
|
Must Release Voltage
|
2 VDC
|
|
Operate Time
|
1.5 ms
|
|
Release Time
|
0.5 ms
|
|
Operating Temperature
|
-35°C ~ 85°C
|
|
Contact Material
|
Ruthenium (Ru)
|
|
Coil Resistance
|
2.2 kOhms
|
|
Base Product Number
|
JWD
|
