STJK(HK) ELECTRONICS CO.,LIMITED
Quality first, reputation first, service first, customers first.

|
| Place of Origin: | China,GuangDong |
| Brand Name: | Analog Devices Inc. |
| Certification: | ISO9001 |
| Model Number: | LTC3636EUFD#TRPBF |
| Minimum Order Quantity: | >=10pcs |
|---|---|
| Price: | $2.5 |
| Packaging Details: | Tape & Reel (TR) Cut Tape (CT) Digi-Reel |
| Delivery Time: | 2-3work days |
| Payment Terms: | Escrow, L/C, D/A, D/P, T/T |
| Supply Ability: | 30000 Acre/Acres per Day+pcs+2-3days |

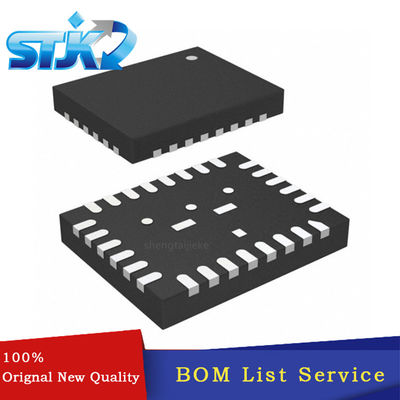

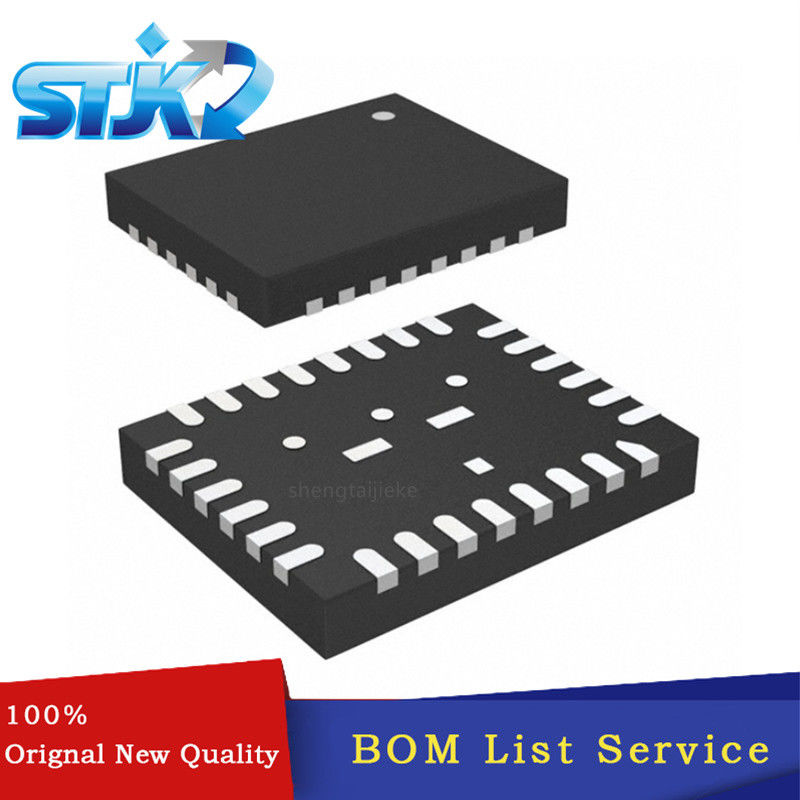

| Description: | IC REG BUCK ADJ 6A DL 28QFN | Package / Case: | 28-WFQFN Exposed Pad |
|---|---|---|---|
| Mounting Type: | Surface Mount | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Voltage - Supply: | 0.6V ~ 5V | Type: | Adjustable |
| Product Status: | Active | Base Product Number: | LTC3636 |
PRODUCT DESCRIPTION
The LTC®3636/LTC3636-1 is a high efficiency, dualchannel monolithic synchronous buck regulator using a controlled on-time current mode architecture, with phase lockable switching frequency. The operating supply voltage range is from 3.1V to 20V, making it suitable for lithium-ion battery stacks as well as point of load power supply applications from a 12V or 5V input.
The operating frequency is programmable from 500kHz to 4MHz with an external resistor and may be synchronized to an external clock signal. The high frequency capability allows the use of small surface mount inductors and capacitors.
The unique constant frequency/controlled ontime architecture is ideal for high step-down ratio applications that operate at high frequency while demanding fast transient response. The LTC3636/LTC3636-1 can select between forced continuous mode and high efficiency Burst Mode operation. The LTC3636 and LTC3636-1 differ in their output voltage sense range.
PRODUCT PROPERTIES
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
2
|
|
Voltage - Input (Min)
|
3.1V
|
|
Voltage - Input (Max)
|
20V
|
|
Voltage - Output (Min/Fixed)
|
0.6V
|
|
Voltage - Output (Max)
|
5V
|
|
Current - Output
|
6A
|
|
Frequency - Switching
|
Adjustable
|
|
Synchronous Rectifier
|
No
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
28-WFQFN Exposed Pad
|
|
Supplier Device Package
|
28-QFN (4x5)
|
|
Base Product Number
|
LTC3636
|
