Product Details:
Place of Origin: China,GuangDong,ShenZhen
Brand Name: Kionix Inc.
Certification: ISO9001
Model Number: KXTJ3-1057
Payment & Shipping Terms:
Minimum Order Quantity: >=6pcs
Price: $4.19
Packaging Details: Original factory sealed packing with standard types: tube,tray,tape and reel,box,bag packing. Or request for your need.
Delivery Time: 1-3work days
Payment Terms: Escrow, L/C, D/A, D/P, T/T
Supply Ability: 30000 Acre/Acres per Day+pcs+2-3days
Contact Now
Detailed Product Description
Description: ACCELEROMETER 2-16G I2C 12LGA Package / Case: 12-VFLGA
Mounting Type: Surface Mount Operating Temperature: -40°C ~ 85°C (TA)
Voltage - Supply: 1.71V ~ 3.6V Bandwidth: 800Hz
Product Status: Active Base Product Number: KXTJ3

Selectable Scale Motion Sensors KXTJ3-1057 Accelerometer X Y Z Axis ±2g 4g 8g16g 800Hz 12-LGA



PRODUCT DESCRIPTION



The KXTJ3-1057 is a tri-axis ±2g, ±4g, ±8g, or ±16g silicon micromachined accelerometer. The sense element is fabricated using Kionix’s proprietary plasma micromachining process technology. Acceleration sensing is based on the principle of a differential capacitance arising from acceleration-induced motion of the sense element, which further utilizes common mode cancellation to decrease errors from process variation, temperature, and environmental stress.



The sense element is hermetically sealed at the wafer level by bonding a second silicon lid wafer to the device using a glass frit. A separate ASIC device packaged with the sense element provides signal conditioning and digital communications.

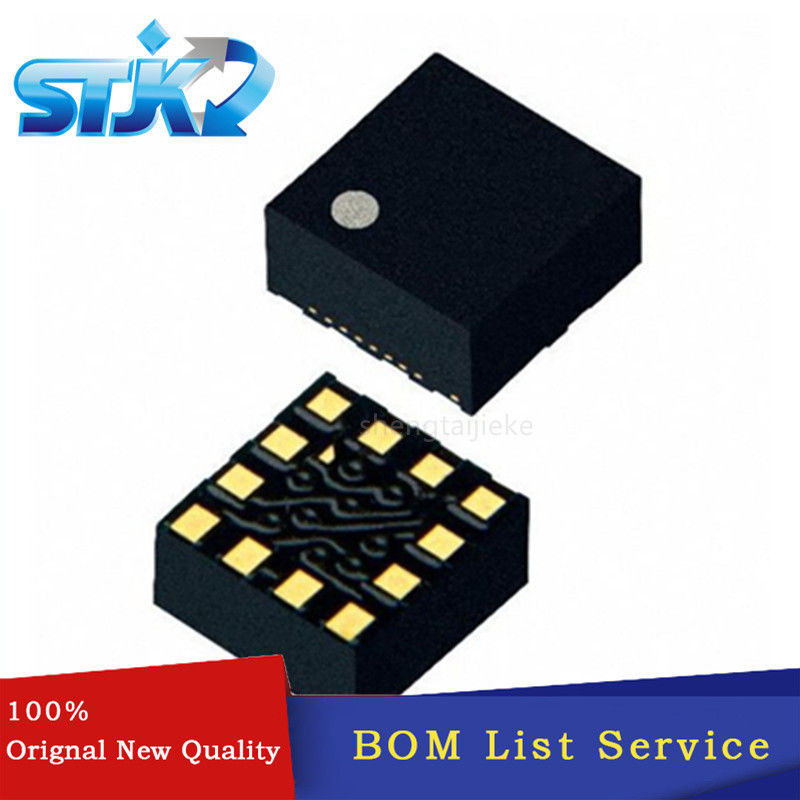

The accelerometer is delivered in a 2 x 2 x 0.9 mm LGA plastic package operating from a 1.71V – 3.6V DC supply. Voltage regulators are used to maintain constant internal operating voltages over the range of input supply voltages.



This results in stable operating characteristics over the range of input supply voltages and virtually undetectable ratiometric error. The I 2C digital protocol is used to communicate with the chip to configure the part and monitor outputs.





PRODUCT PROPERTIES



Product Status
Active
Type
Digital
Axis
X, Y, Z
Acceleration Range
±2g, 4g, 8g, 16g
Sensitivity (LSB/g)
1024 (±2g) ~ 128 (±16g)
Sensitivity (mV/g)
-
Bandwidth
800Hz
Output Type
I²C
Voltage - Supply
1.71V ~ 3.6V
Features
Selectable Scale
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
12-VFLGA
Supplier Device Package
12-LGA (2x2)
Base Product Number
KXTJ3
