STJK(HK) ELECTRONICS CO.,LIMITED
Quality first, reputation first, service first, customers first.

|
| Place of Origin: | China,GuangDong,ShenZhen |
| Brand Name: | Infineon Technologies |
| Certification: | ISO9001 |
| Model Number: | IR38263MTRPBF |
| Minimum Order Quantity: | >=10pcs |
|---|---|
| Price: | $4.9 |
| Packaging Details: | To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. |
| Delivery Time: | 2-4work days |
| Payment Terms: | T/T, Western Union, D/P, D/A, , L/C |
| Supply Ability: | 50000 Acre/Acres per Day+pcs+2-5days |

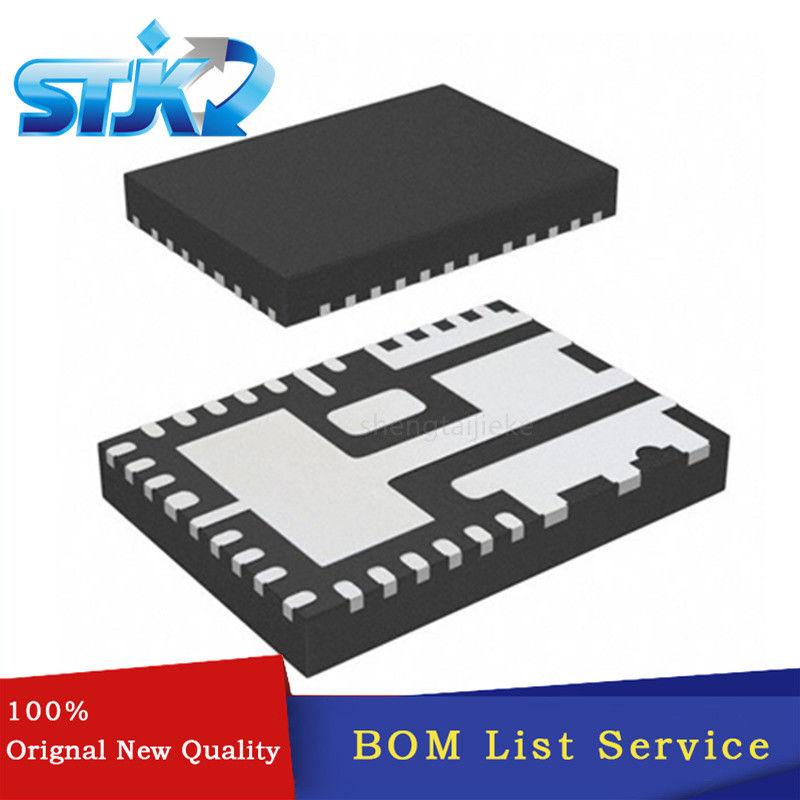

| Description: | IC REG 30A 34PQFN | Package / Case: | 34-PQFN |
|---|---|---|---|
| Mounting Type: | Surface Mount | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Voltage - Supply: | 0.5V~14V | Current - Output: | 30A |
| Product Status: | Active | Base Product Number: | IR38263 |
PRODUCT DESCRIPTION
This family of OptiMOS™ IPOL devices offers easy-to-use, fully integrated and highly efficient DC/DC regulators with PVID and I2C/PMBus™ interface.
The on-chip PWM controller and co-packaged low duty cycle optimized MOSFETs make these devices a space-efficient solution, providing accurate power delivery for low output voltage and high current applications that require a parallel VID interface. These versatile devices offer programmability of switching frequency, output voltage, and fault/warning thresholds and fault responses while operating over a wide input range.
Thus, they offer flexibility as well as system level security in event of fault conditions. The switching frequency is programmable from 150 kHz to 1.5 MHz for an optimum solution. The on-chip sensors and ADC along with the PVID and PMBus™ interfaces make it easy to monitor and report input voltage, output voltage, output current and temperature.
PRODUCT PROPERTIES
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
1.5V
|
|
Voltage - Input (Max)
|
16V
|
|
Voltage - Output (Min/Fixed)
|
0.5V
|
|
Voltage - Output (Max)
|
14V
|
|
Current - Output
|
30A
|
|
Frequency - Switching
|
150kHz ~ 1.5MHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
34-PowerVFQFN
|
|
Supplier Device Package
|
34-PQFN (5x7)
|
|
Base Product Number
|
IR38263
|
