STJK(HK) ELECTRONICS CO.,LIMITED
Quality first, reputation first, service first, customers first.

|
| Place of Origin: | China,GuangDong,ShenZhen |
| Brand Name: | Infineon Technologies |
| Certification: | ISO9001 |
| Model Number: | IR3447MTRPBF |
| Minimum Order Quantity: | >=10pcs |
|---|---|
| Price: | $3.5 |
| Packaging Details: | Tape & Reel (TR) Cut Tape (CT) Digi-Reel |
| Delivery Time: | 1-5work days |
| Payment Terms: | Escrow, L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability: | 99000 Acre/Acres per Day+pcs+2-7days |
| Description: | IC REG BUCK ADJUSTABLE 25A PQFN | Package / Case: | 35-PQFN |
|---|---|---|---|
| Mounting Type: | Surface Mount | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Voltage - Supply: | 0.6V ~ 18.06V | Current - Output: | 25A |
| Product Status: | Active | Base Product Number: | IR3447 |
PRODUCT DESCRIPTION
The IR3447 SupIRBuck® is an easy-to-use, fully integrated and highly efficient DC/DC regulator. The onboard PWM controller and MOSFETs make IR3447 a space-efficient solution, providing accurate power delivery for low output voltage and high current applications.
IR3447 is a versatile regulator which offers programmability of switching frequency and current limit while operating in wide input and output voltage range. The switching frequency is programmable from 300 kHz to 1.5MHz for an optimum solution.
It also features important protection functions, such as Over Voltage Protection (OVP), Pre-Bias startup, hiccup current limit and thermal shutdown to give required system level security in the event of fault conditions.
PRODUCT PROPERTIES
|
Product Status
|
Obsolete
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
5V
|
|
Voltage - Input (Max)
|
21V
|
|
Voltage - Output (Min/Fixed)
|
0.6V
|
|
Voltage - Output (Max)
|
18.06V
|
|
Current - Output
|
25A
|
|
Frequency - Switching
|
300kHz ~ 1.5MHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 125°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|

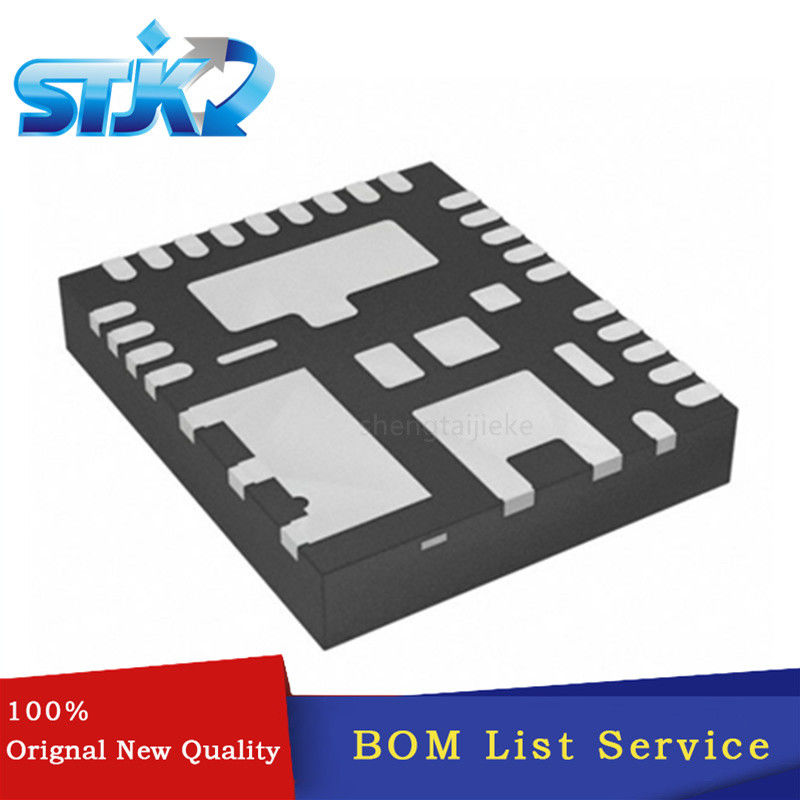

Package / Case
|
35-PowerVQFN
|
|
Supplier Device Package
|
35-PQFN (5x6)
|
