STJK(HK) ELECTRONICS CO.,LIMITED
Quality first, reputation first, service first, customers first.

|
| Place of Origin: | China,GuangDong,ShenZhen |
| Brand Name: | Texas Instruments |
| Certification: | ISO9001 |
| Model Number: | TPS53319DQPR |
| Minimum Order Quantity: | >=10pcs |
|---|---|
| Price: | $1.99 |
| Packaging Details: | Tape & Reel；Cut Tape；Digi-Reel |
| Delivery Time: | 2-3days |
| Payment Terms: | Escrow, L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability: | 10000 Acre/Acres per Day+pcs+1-2days |

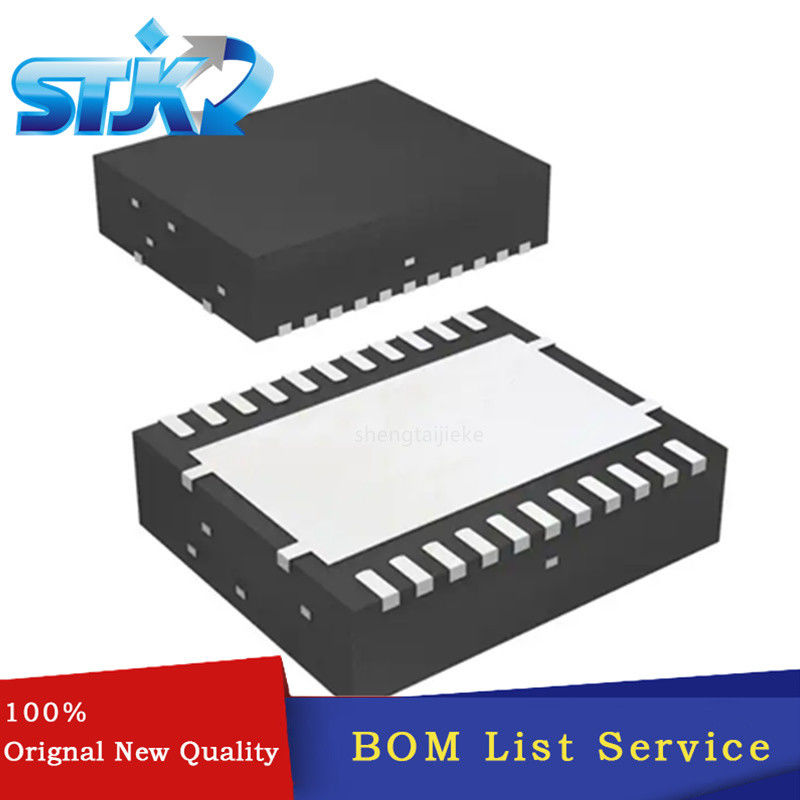

| Description: | IC REG BUCK ADJUSTABLE 14A 22SON | Package / Case: | 22-PowerLFDFN |
|---|---|---|---|
| Mounting Type: | Surface Mount | Operating Temperature: | -40°C ~ 85°C (TA) |
| Voltage - Supply: | 0.6V ~ 5.5V | Frequency - Switching: | 250kHz ~ 1MHz |
| Product Status: | Active | Base Product Number: | TPS53319 |
PRODUCT DESCRIPTION
The TPS53318 and TPS53319 devices are D-CAP mode, 8-A or 14-A synchronous switchers with integrated MOSFETs. They are designed for ease of use, low external component count, and spaceconscious power systems. These devices feature accurate 1%, 0.6-V reference, and integrated boost switch. A sample of competitive features include: 1.5-V to 22-V wide conversion input voltage range, very low external component count, DCAP™ mode control for super fast transient, auto-skip mode operation, internal soft-start control, selectable frequency, and no need for compensation. The conversion input voltage ranges from 1.5 V to 22 V, the supply voltage range is from 4.5 V to 25 V, and the output voltage range is from 0.6 V to 5.5 V. These devices are available in 5 mm x 6 mm, 22-pin QFN package and is specified from –40°C to 85°C.
PRODUCT PROPERTIES
|
Mfr
|
Texas Instruments
|
|
Series
|
D-CAP™, Eco-Mode™
|
|
Product Status
|
Active
|
|
Function
|
Step-Down
|
|
Output Configuration
|
Positive
|
|
Topology
|
Buck
|
|
Output Type
|
Adjustable
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
1.5V
|
|
Voltage - Input (Max)
|
22V
|
|
Voltage - Output (Min/Fixed)
|
0.6V
|
|
Voltage - Output (Max)
|
5.5V
|
|
Current - Output
|
14A
|
|
Frequency - Switching
|
250kHz ~ 1MHz
|
|
Synchronous Rectifier
|
Yes
|
|
Operating Temperature
|
-40°C ~ 85°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
22-PowerLFDFN
|
|
Supplier Device Package
|
22-LSON-CLIP (6x5)
|
|
Base Product Number
|
TPS53319
|
Contact Person: Tom Guo
Tel: +8613822899993
