| Place of Origin: | China |
| Brand Name: | Infineon Technologies |
| Certification: | ISO9001 |
| Model Number: | AIKQ120N60CT |
| Minimum Order Quantity: | >=1pcs |
|---|---|
| Price: | request for need |
| Packaging Details: | TO-247-3 |
| Delivery Time: | 2-3days |
| Payment Terms: | T/T/Escrow |
| Supply Ability: | 100000 Acre/Acres per Day+pcs+1-2days |
| Voltage - Collector And Emitter Breakdown (maximum): | 600 V | Current Collector (Ic) (maximum): | 160 A |
|---|---|---|---|
| Current Collector Pulse (Icm): | 480 A | Vce (on) (maximum) At Different Vge And Ic: | 2V @ 15V，120A |
| Power - Maximum: | 833 W | Switching Energy: | 4.1mJ (ON), 2.8mJ (OFF) |
| Grid Charge: | 772 NC | Test Conditions: | 400V, 120A, 3 Ohms, 15V |
| Working Temperature: | -40°C ~ 175°C（TJ） | ||
| High Light: | Industrial Integrated Circuit Sensors,TO-247-3 Integrated Circuit Sensors,AIKQ120N60CT |
||

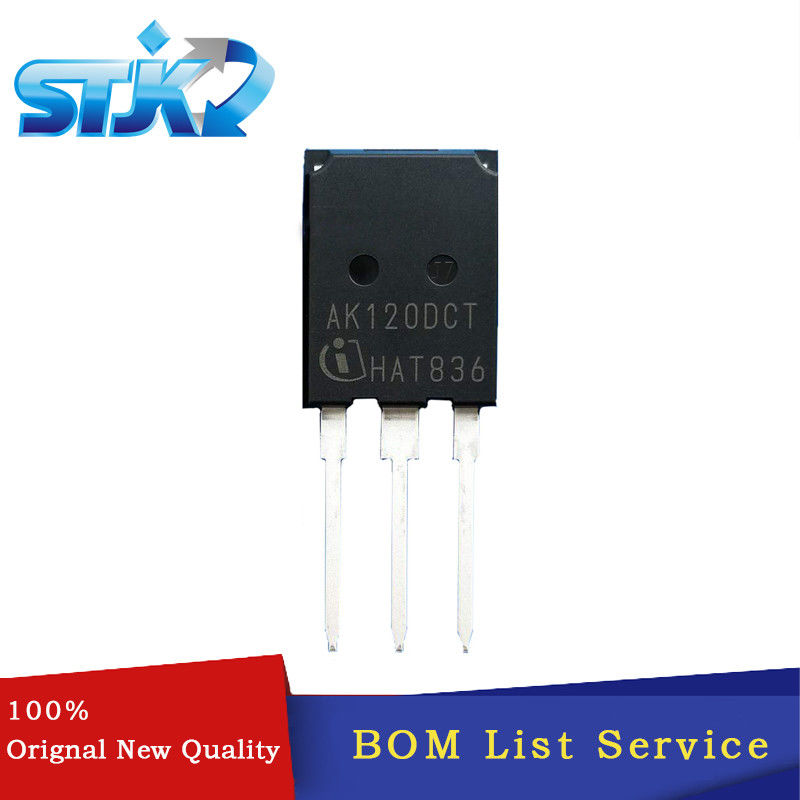

AIKQ120N60CT TO-247-3 Discrete Semiconductor Product List IGBT Brand New And Original
PRODUCT DESCRIPTION
Part number AIKQ120N60CT is manufactured by Infineon Technologies and distributed by Stjk. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.
For more information on AIKQ120N60CT detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity AIKQ120N60CT to your message. Send an email to stjkelec@hotmail.com for a quote now.
PRODUCT PROPERTIES
|
Product Status
|
Active
|
|
IGBT Type
|
Trench Field Stop
|
|
Voltage - Collector Emitter Breakdown (Max)
|
600 V
|
|
Current - Collector (Ic) (Max)
|
160 A
|
|
Current - Collector Pulsed (Icm)
|
480 A
|
|
Vce(on) (Max) @ Vge, Ic
|
2V @ 15V, 120A
|
|
Power - Max
|
833 W
|
|
Switching Energy
|
4.1mJ (on), 2.8mJ (off)
|
|
Input Type
|
Standard
|
|
Gate Charge
|
772 nC
|
|
Td (on/off) @ 25°C
|
33ns/310ns
|
|
Test Condition
|
400V, 120A, 3Ohm, 15V
|
|
Operating Temperature
|
-40°C ~ 175°C (TJ)
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|
TO-247-3
|
|
Supplier Device Package
|
PG-TO247-3-46
|
|
Base Product Number
|
AIKQ120
|
