STJK(HK) ELECTRONICS CO.,LIMITED
Quality first, reputation first, service first, customers first.
 |
| Place of Origin: | China |
| Brand Name: | Analog Devices Inc |
| Certification: | ISO9001 |

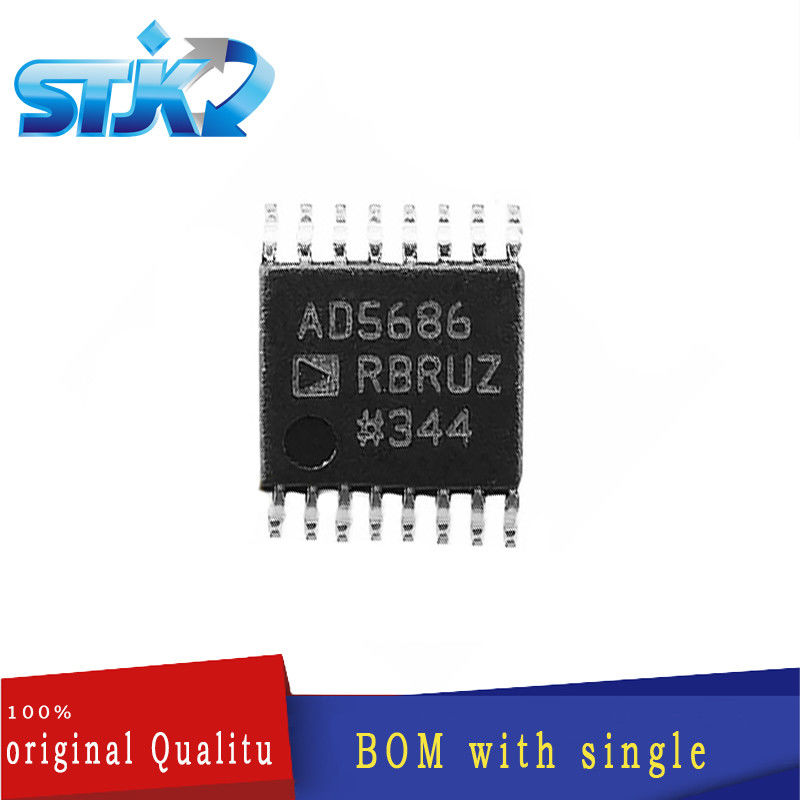

| Model Number: | AD5686BRUZ |
| Minimum Order Quantity: | >=1pcs |
|---|---|
| Price: | $3.59 |
| Packaging Details: | Original factory sealed packing with standard types: tube,tray,tape and reel,box,bag packing. |
| Delivery Time: | 2-3days |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram, D/P, D/A |
| Supply Ability: | 100000 Acre/Acres per Day+pcs+1-2days |
| Voltage Supply, Analog: | 2.7V ~ 5.5V | Voltage Supply, Digital: | 1.8V ~ 5.5V |
|---|---|---|---|
| INL/DNL (LSB): | ± 2, ± 1 (maximum) | Framework: | Resistance String DAC |
| Working Temperature: | -40°C ~ 105°C |
PRODUCT DESCRIPTION
Part number AD5686BRUZ is manufactured by Analog Devices Inc and distributed by Stjk. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.
For more information on AD5686BRUZ detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity AD5686BRUZ to your message. Send an email to stjkelec@hotmail.com for a quote now.
PRODUCT PROPERTIES
|
Product Status
|
Active
|
|
Number of Bits
|
16
|
|
Number of D/A Converters
|
4
|
|
Settling Time
|
8µs
|
|
Output Type
|
Voltage - Buffered
|
|
Differential Output
|
No
|
|
Data Interface
|
SPI
|
|
Reference Type
|
External
|
|
Voltage - Supply, Analog
|
2.7V ~ 5.5V
|
|
Voltage - Supply, Digital
|
1.8V ~ 5.5V
|
|
INL/DNL (LSB)
|
±2, ±1 (Max)
|
|
Architecture
|
String DAC
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
Package / Case
|
16-TSSOP (0.173", 4.40mm Width)
|
|
Supplier Device Package
|
16-TSSOP
|
|
Mounting Type
|
Surface Mount
|
|
Base Product Number
|
AD5686
|
